No part of this manual may be reproduced in any form, by print, photoprint, microfilm or any other means without written permission from the publisher.

In spite of all care taken in composing the text and illustrations, neither the editor nor the publisher can accept any liability for possible damage that might result from any fault that may be in this publication.

Information in this document is subject to change without notice and does not represent a commitment on the part of TableAir.

User Manual version history

Rev. 1.0

10th March 2020

First Release.

Warnings and Statements

Introduction

The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (service) instructions in the literature accompanying the apparatus.

Read this manual before attempting to start up or service the product. Retain the manual for future use. TableAir accepts no responsibility for any consequential loss, failure or damage resulting from a failure to heed any warnings or to follow the instructions.

Warnings

The SB1 may be operated only from the power adapter provided by TableAir. Operation from other supplies is not authorized.

The cables should not exceed 3 m in length.

Warranty and support services

Technical support

Should you need technical assistance please contact “TableAir” UAB.

Tel: +44 20 3322 4746

Email: support@tableair.com Web: www.tableair.com

Return Merchandise Authorization

Please contact via numbers above to receive an RMA number before sending your product back to us for repair. Products sent without an RMA number will be returned to sender.

One-year limited warranty

This device is guaranteed against manufacturing defects for one full year from the original date of purchase.
This warranty is valid at the time of purchase and is non-transferable.
Damage caused by accident, misuse, improper storage, and/or uncertified repairs are not covered by this warranty.
Warranty is only valid in the country of purchase.
We assume no liability that may result directly or indirectly from the use or misuse of these products.

Technical specification

NRR technical specifications:

	Specification	Value
Environmental	Usage temperature	+20°C to +25°C
	Storage temperature	0°C to +40°C
	Relative humidity	5% to 95% (non-condensing)
Dimensions	Length	98mm
	Width	60mm
	Height	19mm
RF Operation	RFID	13.56MHz
	NFC	13.56MHz
	Antenna	Internal
Distance	Max Reading Distance	4-6cm
RFID Support	Standards and cards	ISO/IEC 14443A/MIFARE, FeliCa, ISO/IEC 14443B
NFC Support	Standart	ISO/IEC 18092, ECMA 340 Peer-to-Peer
Power requirements	Supply Voltage	5V
	Operating Current	0.3A
Accessories	Quick start guides	1 pcs
Protection classes	Water Proof	IPX1

Introduction

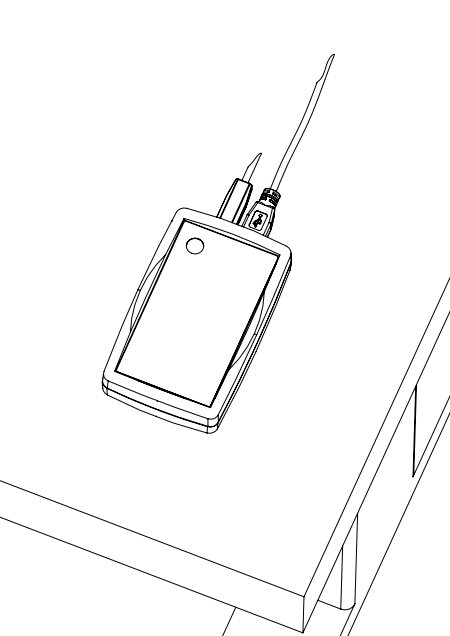

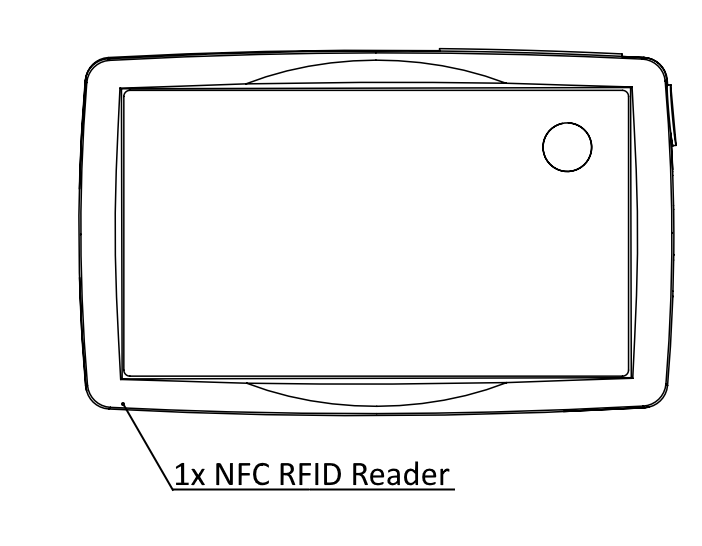

The NFC and RFID Reader, or NRR, is a product designed as an accessory to other TableAir devices, used to help users book a desk or check in without the use of a smartphone – in short, to easily identify.

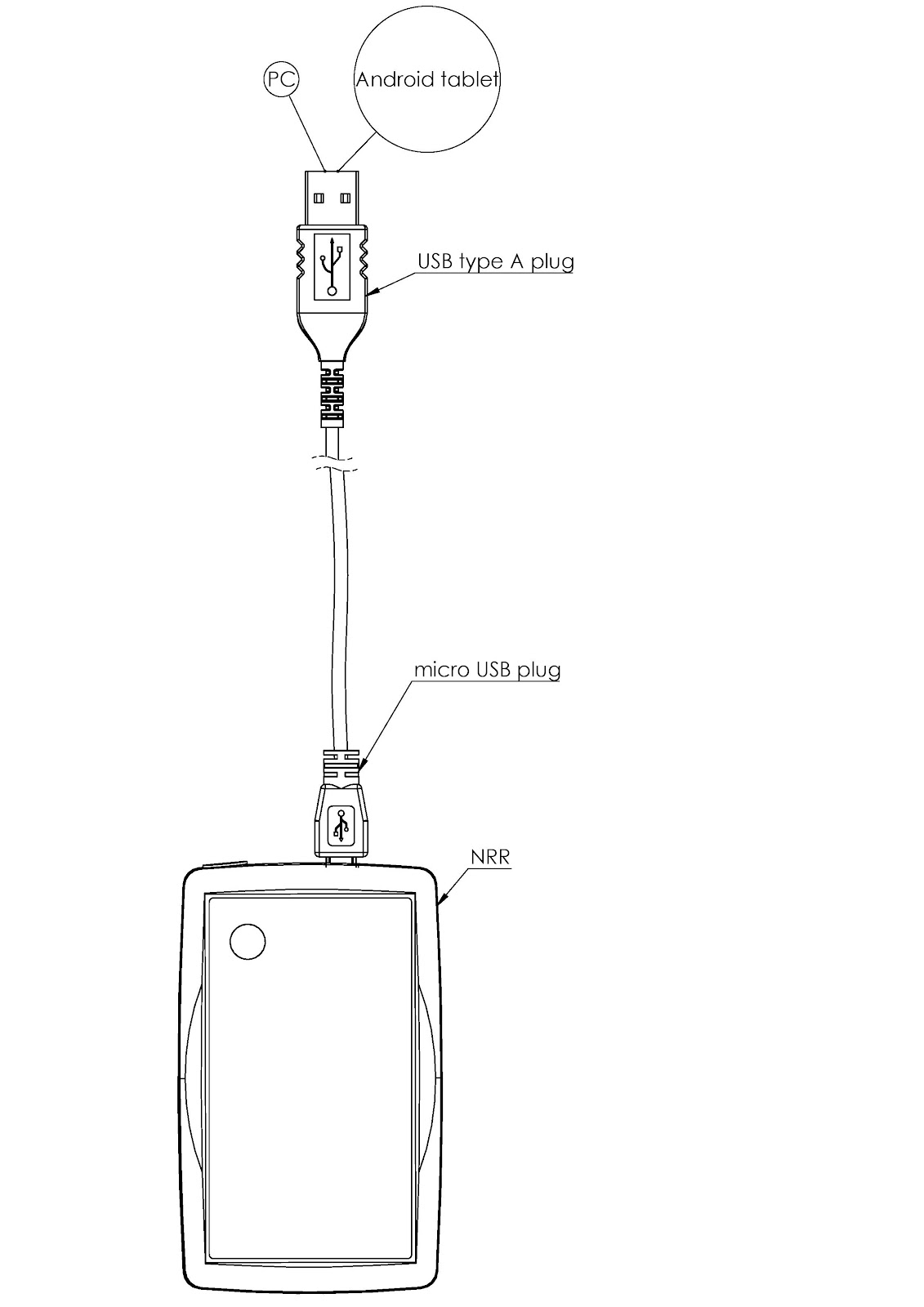

It can be connected to these TableAir devices: SB1, SBU Plus, Meeting room Tablet. By having personal NFC cards, registered to a user’s name, the reader and the card together will enable the user to have a simple and intuitive interface to book desks and meeting rooms, and make check-ins. Just by placing the card to the reader you can perform both these actions, accordingly. In most cases cards assigned for access control may be used.

This manual details the NRR installation procedure.
